Main Specifications:

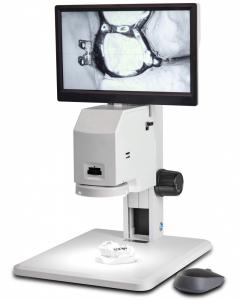

Microscope:

• Magnifications: 12X-78X(ZOOM)
        (optional magnifications: 9X-220X)
• Built in 0.35X Video Coupler;
        0.5X for options.
• Standard 1X Objective Lens;
        0.75X, 1.5X and 2X for options.
• FOV: 23mm- 3mm;
        Max. 30mm for options
• Working Distance: 100mm;
        Max.198 for options Base
• Size: 260mm(X)*320mm(Y)
• Height of the microscope: 480mm
• Weight of the microscope: 5.5kgs
• Camera: 2.0M HDMI, true color, no delay.
• Max. Resolution: 1920*1080
• Sensor: 1/2.86 inch SONY sensor
• Pixel Size: 2.75*2.75μm
• Frame Rate: 60fps@1920*1080
• SNR: 65dB
• LCD Display: 12 inch HD LCD display, 1080P, wide screen, multi angle adjustment.
• Illumination: High quality LED illumination, 144 LED bulbs.
• Operation: Wireless mouse or manual operation, image capture, U disk storage and measurement.

An External HDMI Output is available for connecting a larger HDMI LCD display. USB interface for U-Disk storage
